DATASHEET

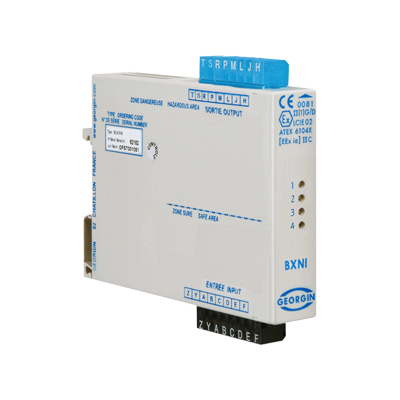

4-20mA loop galvanic isolator – BXNI Series Rail Mounting Galvan

รายละเอียด	This device is designed to isolate 4/20mA signals between the safe and the hazardous areas.
Input:	Current (4/20mA)
Output:	Current (4/20mA)
Supply:	No power supply required
Model:	1, 2 or 4 channels
Setting:	Adjustment potentiometer for the source on the front
installation:	Safe area
Options:	» Screw terminals
» Ex d enclosure – RTPE9-DIN or other Ex d enclosure
EC Type examination certificate number :	LCIE 02 ATEX 6104X
IECEx conformity certificate :	LCI 09.0013X
ATEX/IECEx classification :	II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]
