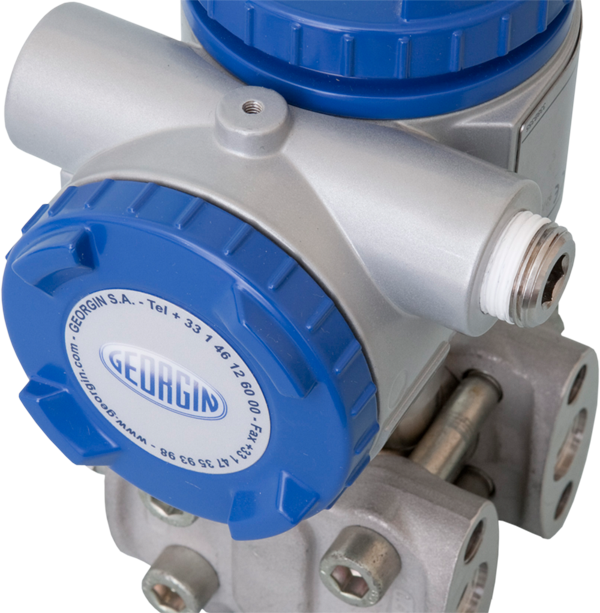

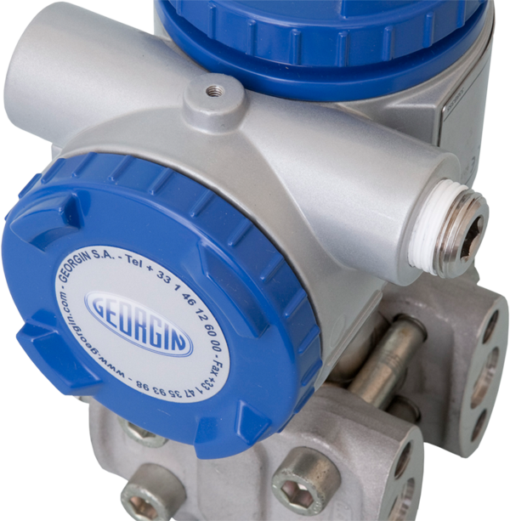

Differential pressure and Flow transmitter FKC series – ProcessX

The transmitter utilizes a unique micro machined capacitance silicon sensor with state-of-the-art microprocessor
technology to provide exceptional performance and functionality.

Differential pressure and Flow transmitter
FKC series – ProcessX family
SMART Transmitter 4-20mA + HART protocol
Span limits : 0.1 KPa to 20000KPa
Rangeability : 100:1
Accuracy : 0.065% (0.04% as an option)

Power supply 10.5 to 45VDC
Process wetted parts material : Inox 316L, Hastelloy,
Monel, Tantalum, …
Process connection : ¼”-18NPT (oval flanges on request)
Burnout according NAMUR NE43 recommandations
Long term stability : +/- 0.1% of maximum span / 10years

Options:
» Local analog or digital Indicator
» Intrinsically safe version
» Explosion proof version
» FM, CSA and IECEX certification
» Stainless Steel electronic housing
