DATASHEET

DL 01 stainless steel sensor leak testing, pipeline monitoring

DL 01	stainless steel sensorleak testing, pipeline monitoring

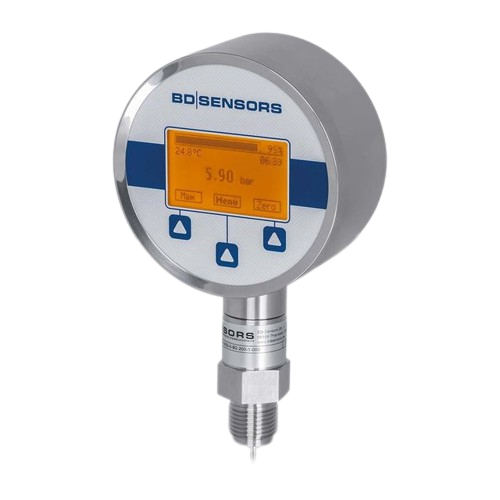

The digital pressure gauge DL01 is a precision device fulfilling highest demands. It was conceived especially for leak testing or pipeline monitoring. The advantage of the DL01 is that it consists of two devices – the digital display and the pressure transmitter -which can be combined without any tools.
The DL01 can be adapted to several mounting situations quickly and without any problems within seconds without the need to store a variety of digital gauges.
Outstanding measuring qualities, an intuitive operation, as well as an integrated data logger characterize the DL01. In addition, the graphic display provides the handling and the clear presentation of the measuring procedure.
The gathered data and the relevant information (TAG or serial number, etc.) are recorded and can be read out and processed over the integrated interface via USB and PC software.
Features	nominal pressure: 0 …100 mbar up to 0 … 400 bar
accuracy: 0,05 % FSO BFSL (Klasse 0,05)
modular sensor concept
data logger
graphics-capable display
stainless steel housing d = 100 mm
communication interface USB 2.0
Optional Features	data logger interval 1s … 99 days or fixed time
default values for time / test duration
zero point calibration
software incl. USB converter
backlight and much more
