DATASHEET

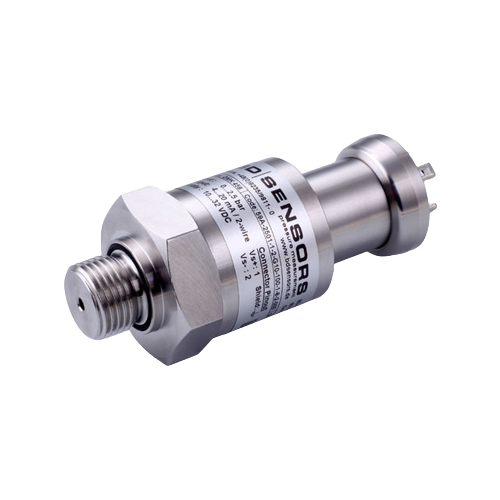

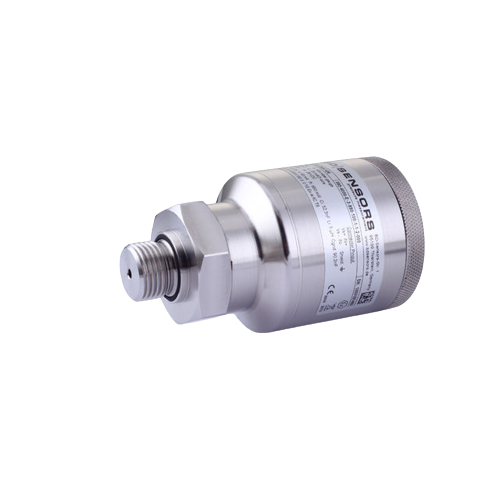

DMK 458 ceramic sensor marine, shipbbuilding, offshore

DMK 458	ceramic sensor marine, shipbbuilding, offshore
The pressure transmitter DMK 458 has been developed for marine and offshore applications. In addition to thread connections, different flush versions are available, which are especially suitable for pasty, viscous, and polluted media.
Due to the capacitive ceramic sensor developed by BD\|SENSORS, which is optionally available in Al2O3 99.9 %, the DMK 458 shows an outstanding accuracy as well as a high overload and temperature resistance
Features	nominal pressure: 0 … 40 mbar up to 0 … 20 bar
accuracy: 0.25 % (opt. 0.1 %) FSO
shipping approvals: American Bureau of Shipping (ABS), Bureau Veritas (BV), China Classification Society (CCS), Det Norske Veritas (DNV), Germanischer Lloyd (GL), Lloyd’s Register (LR)
high overpressure resistance
excellent accuracy
Optional Features	IS-versionEx ia = intrinsically safe for gases and dusts
diaphragm AI2O3 99.9 %
pressure port CuNiFe
