DATASHEET

DS 200 stainless steel sensor universal applications

DS 200	stainless steel sensoruniversal applications

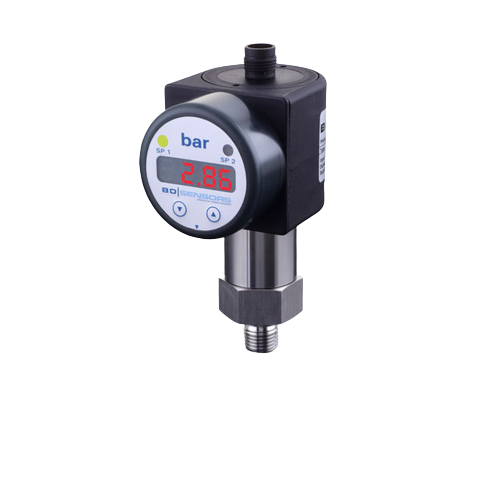

The electronic pressure switch DS 200 is the successful combination of – intelligent pressure switch- digital display
and has been specially designed for numerous applications in various industrial sectors.
As standard the DS 200 offers a PNP contact and a rotatable display module with 4-digit LED display. Optional versions like e.g. an intrinsically safe version, max. 4 contacts and an analogue output complete the profile.
Features	nominal pressure: 0 … 100 mbar up to 0 … 600 bar
accuracy: 0.35 % (opt. 0.25 %) FSO
indication of measured values on a 4-digit LED display
rotatable and configurable display module
1, 2 or 4 independent PNP contacts, freely configurable
Optional Features	IS-versionEx ia = intrinsically safe for gases
pressure port PVDF
customer specific versions
