DATASHEET

HMC03M – Heated Humidity Sensor for Radiosondes and Weather Balloons

HMC03M	Heated Humidity Sensor for Radiosondes

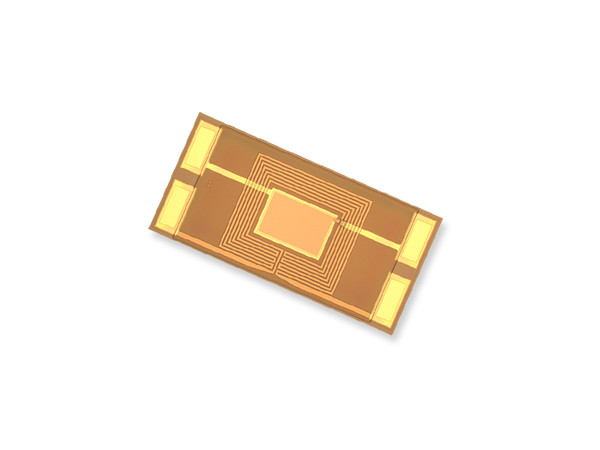

HMC03M is optimized for short response time even at very low temperature in the upper atmosphere. It combines on a silicon substrate a capacitive relative humidity sensor and a heating resistor (heater).
รายละเอียด	The heater is dedicated for fast recovery of the humidity sensor after condensation or icing. This leads to outstanding measuring performance in high-end weather observation.

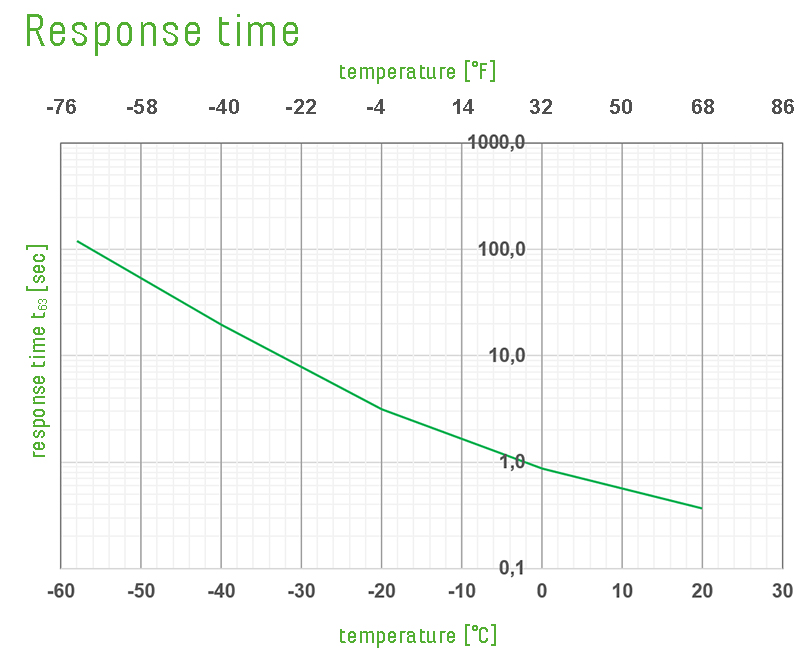

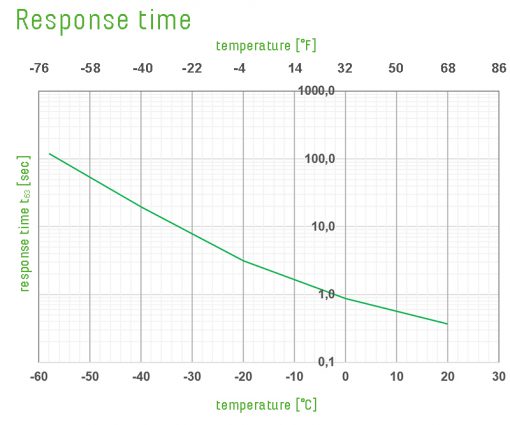

Key Features HMC03M	Very short response time even at low temperature
Fast recovery after condensation or icing due to sensor heating
High sensitivity and outstanding linearity
NOMINAL CAPACITANCE C0 (AT 30 °C / 86 °F)	120 ± 40 pF
SENSITIVITY (FOR C0 = 120 PF, IN AVERAGE)	0.41 pF / % RH
WORKING RANGE TEMPERATURE	-80…60 °C (-112…140 °F)
WORKING RANGE HUMIDITY	0…100 % RH
