LMK 351 ceramic sensor (flush) environmental industry, renewable energy
| LMK 351 | ceramic sensor (flush)environmental industry, renewable energy |
|---|---|

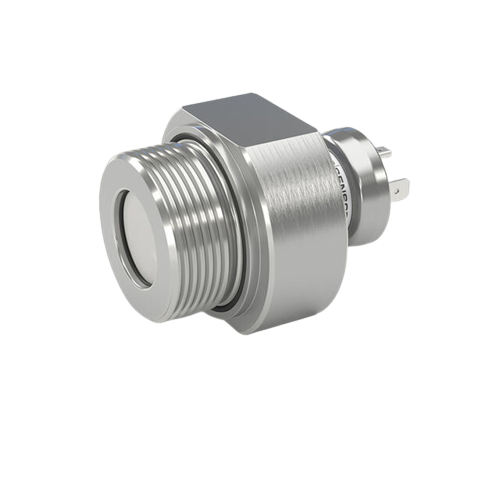

| The screw-in transmitter LMK 351 has been designed for measuring small system pressure and level measurement in container. The LMK 351 is based on an own-developed capacitive ceramic sensor element. Usage in viscous and pasty media is possible because of the flush mounted sensor. | |
| For the usage in aggressive media a pressure port in PVDF and the diaphragm in AI2O3 99.9 % is available. An intrinsically safe version complete the range of possibilities. | |
| Features | nominal pressure: 0 … 40 mbar up to 0 … 20 bar |
| accuracy: 0.35 % (opt. 0.25 %) FSO | |
| pressure port G 1 1/2″ for pasty and polluted media | |
| Optional Features | IS-versionEx ia = intrinsically for gases and dusts |
| pressure port PVDF for aggressive media | |
| diaphragm pure ceramic (99,9 % Al2O3) | |
| customer specific versions | |
