DATASHEET

LMK 358 H ceramic sensor detachable stainless steel probe Ø 39,5

LMK 358H	ceramic sensordetachable stainless steel probe Ø 39,5

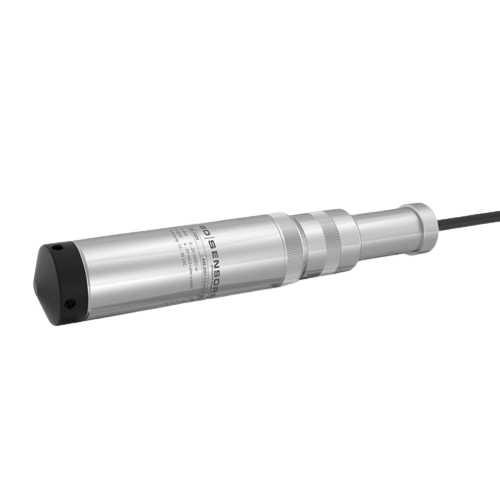

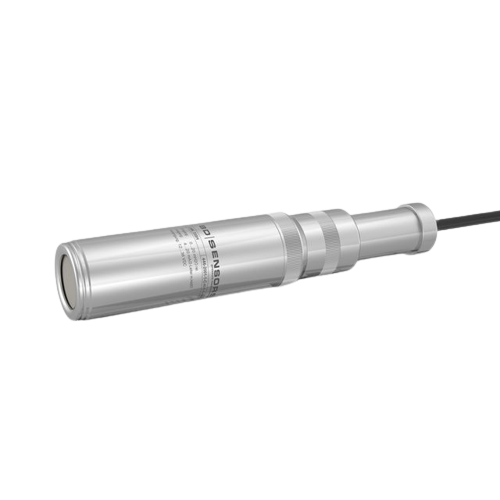

The detachable stainless steel probe LMK 358H has been designed for level measurement in waste water, waste and higher viscosity media. Basic element is a capacitive ceramic sensor.

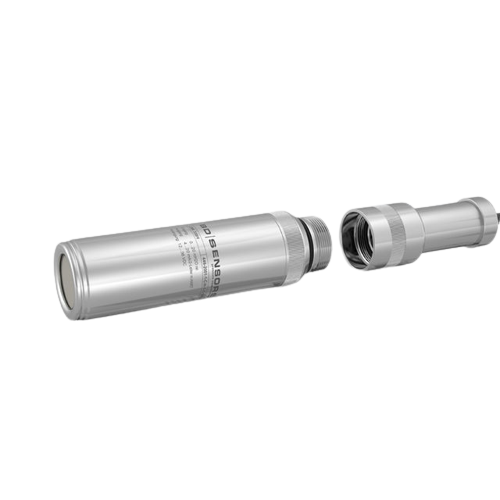

In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.
Features	nominal pressure range 0 … 60 cmH2O up to 0 … 100 mH2O
accuracy: 0.1 %
diameter 39,5 mm
cable and sensor section detachable
HART®-communication (setting of offset. span and damping)
permissible temperatures up to 85 °C
high long term stability
Optional Features	IS-versionEx ia = intrinsically safe for gas and dust
diaphragm (AI2O3 99,9 %)
accessories e.g. mounting flange with cable gland and terminal clamp
