DATASHEET

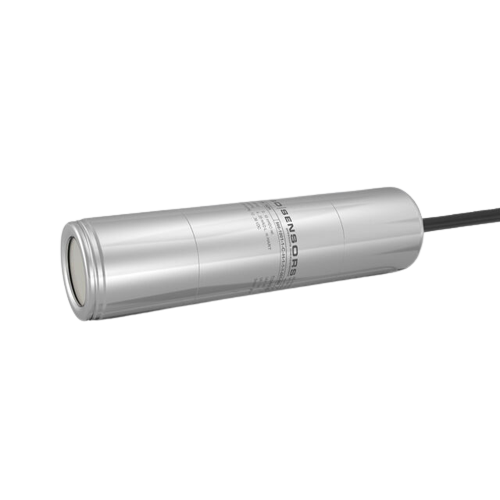

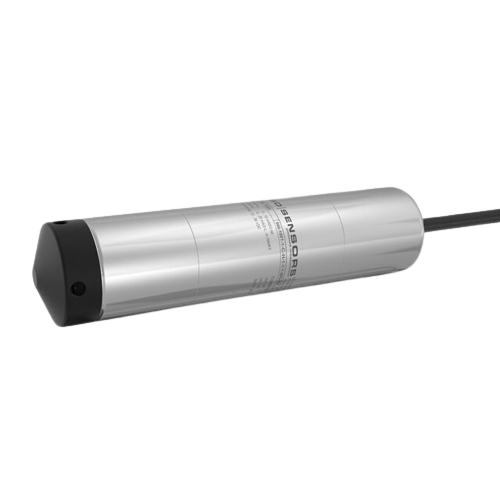

LMK 382 H ceramic sensor steel probe Ø 39,5

LMK 382H	ceramic sensorsteel probe Ø 39,5
The stainless steel probe LMK 382H has been designed for continous level measurement in waste water, waste and higher viscosity mediums.
Basic element is a robust and high overpressure capable capacitive ceramic sensor e.g. for low levels.
Features	nominal pressure range 0 … 60 cmH2O up to 0 … 200 mH2O
accuracy: 0.1 % FSO
diameter 39.5 mm
HART®-communication (setting of offset, span and damping)
permissible temperatures up to 85 °C
high overpressure capability
high long term stability
Optional Features	IS-version Ex ia = intrinsically safe for gas and dust
mounting with stainless steel pipe
flange version
diaphragm pure ceramic (99,9 % AI2O3)
accessoires e.g. assembling and probe flange, mounting clamp
