DATASHEET

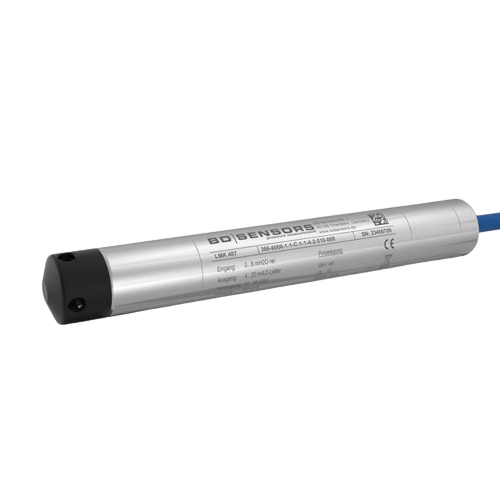

LMK 487 ceramic sensor probe Ø 22mm

LMK 487	ceramic sensorprobe Ø 22mm
The hydrostatic probe LMK 487 has been developed for measuring levels in various tank applications for shipbuilding and offshore. In comparison to the hydrostatic probe LMK 458 the external diameter amounts to only 22 mm by which the installation in 1″ pipes can be carried out easily.
Beside the housing materials stainless steel and titanium, elastomer materials are available by which an optimum adaption to the application can be ensured.
Features	nominal pressure: 0 … 1 mH2O up to 0 … 100 mH2O
accuracy: 0.25 % FSO
output signal 4 … 20mA / 2-wire
diameter 22 mm
shipping approvals: LR (Lloyd´s Register), DNV(Det Norske Veritas), GL (Germanischer Lloyd), ABS (American Bureau of Shipping), CCS (China Classification Society)
high long term stability
diaphragm ceramics Al2O3 (99.9 %)
Optional Features	IS-versionEx ia = intrinsically safe for gases and dusts
housing material titanium
temperature element Pt 100
different kinds of elastomer
