Specific Environments – Energy
NUCLEAR

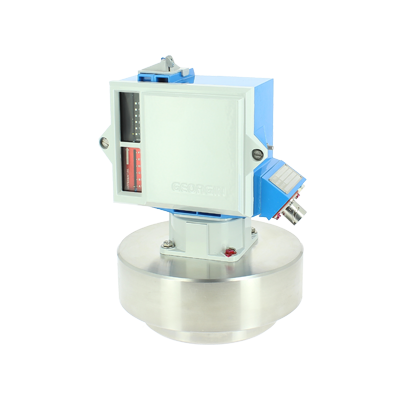

P series pressure switch – classified K3
Version: relative, differential, absolute pressure

Ranges:
» From -1 to 1000 bar (relative pressure)
» From 0 to 90 bar (differential pressure)

Case: Zamak

Sensing element:
» Stainless steel bellows
» NBR or EPDM diaphragm
» Stainless steel bourdon tube

Switches : 1 or 2 Nitrogen sealed change over (SPDT)

Features:
» 40° descending angle electrical output
» Electrical connection: Quick connector plug (SOURIAU = K3 Parc or SAIB= EPR)
» Long term packaging (GARDAC® type)

Options:
» Intrinsic Safety
» explosion-proof housing
» Increased safety housing

Certificates :
» GOST certificate
» EDF K3 / K3ad qualification
» Manufactured in compliance with the RCCE 2005 standards
