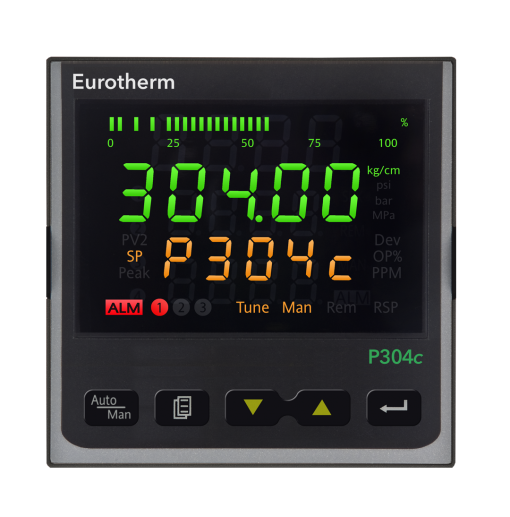

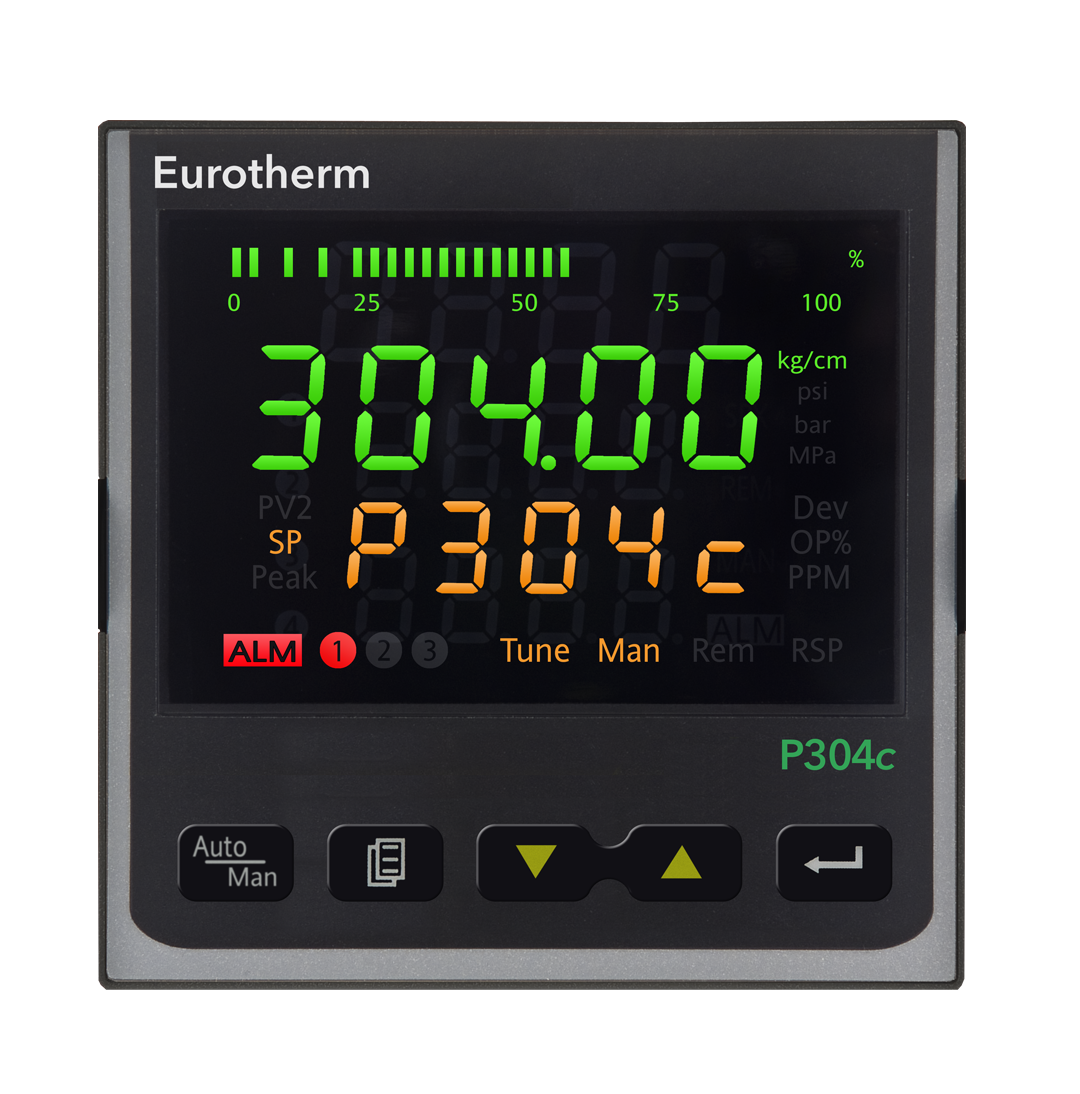

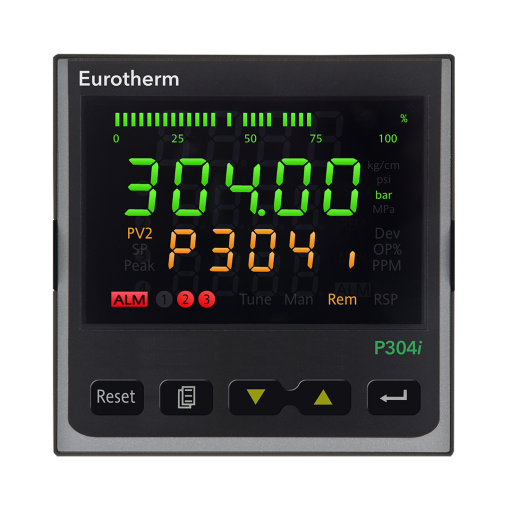

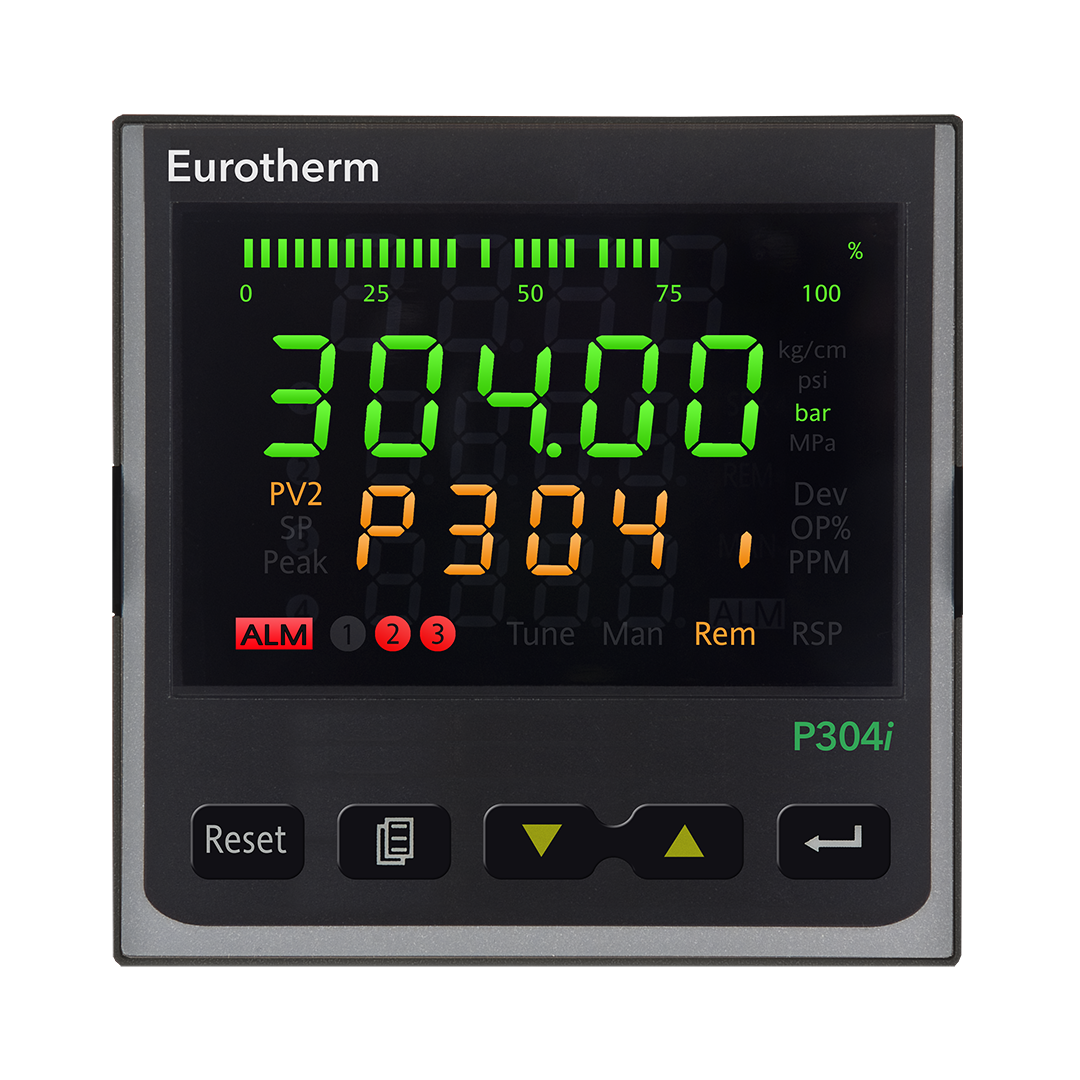

P304 1/4 DIN Melt Pressure Indicator/ Controller
| รายละเอียด | P304 1/4 DIN Melt Pressure Indicator/ Controller |
|---|---|
| The Eurotherm piccolo™ P304i Melt Pressure indicator and P304c controller offer versatile solutions with advanced features and a wide range of hardware options that make them ideal for all types of plastic processing. | |
| Description | A strain gauge or process linear input is standard with an optional strain gauge input for differential pressure control, or a universal input for remote setpoint. Up to two opto-isolated DC linear outputs are available for control or retransmission along with one standard logic input for alarm reset/acknowledge or zero calibration of sensor. An additional four logic inputs may be selected for remote activation of functions like auto/manual mode selection and increase/ decrease of power output. |
| It employs universal inputs (TC, RTD, DC) with INSTANT ACCURACY™. Direct connection of Zirconia probes is also supported for carbon potential control in atmospheric combustion applications (heat treatment industry). The advanced control algorithm and gain scheduling gives straight line control, even in difficult non-linear applications and automatic tuning simplifies commissioning. | |
| The Display | A custom, dual-line 5-digit display provides a complete view of the process while a horizontal bar graph gives clear visual indication of the process input. The status of alarms, outputs, active setpoint and engineering units are represented with clear beacons on the front of the unit. |
| Configuration | The P304 is fully software configurable using iTools PC configuration and parameter monitoring. iTools provides the ability to edit, store and ‘clone’ complete controller configurations as well as data logging and process monitoring capability. |
| Features | Easy to integrate and use in new and legacy applications Fast-acting alarms to protect against overpressure Responsive, precision PID control with overshoot inhibit Easy, effective auto-tune Universal + strain gauge inputs Second input for differential pressure indication/ control Analogue retransmission Easy flexible configuration via PC software or front panel Modbus RTU digital communications High visibility three colour LED display Wipedown, customizable front fascia High reliability and quality Three year warranty |
