DATASHEET

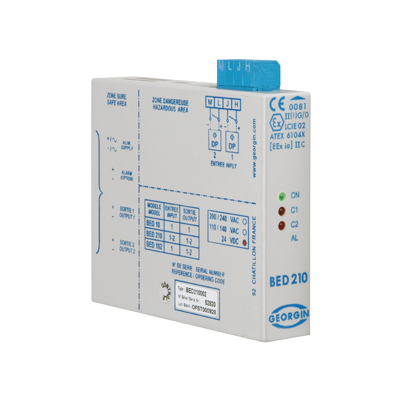

Relays – BED Series Plug-in modules for backplanes

รายละเอียด	This device is designed to relay digital signals coming from a switch or a proximity sensor installed in hazardous area to the safe area.
Input:	Switch or proximity sensor
Output:	Switch (5A – 250V) or transistor (5kHz)
Supply:	24-48 VDC, 110 VAC or 230 VAC
Model:	1 or 2 channels and signal duplicator (1 input – 2 outputs)
Red LED	for relay state, and green LED for presence of voltage
Installation:	Safe area
Options:	» Alarm (loop integrity with proximity sensor)
» Screw terminals
» Icc current limited to 20mA or 5mA according to codification
EC Type examination certificate number :	LCIE 02 ATEX 6104X
IECEx conformity certificate :	LCI 09.0013X
ATEX/IECEx classification :	II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]
