DATASHEET

x|act ci ceramic sensor (flush) hygienical application

x\|act ci	ceramic sensor (flush) hygienical application

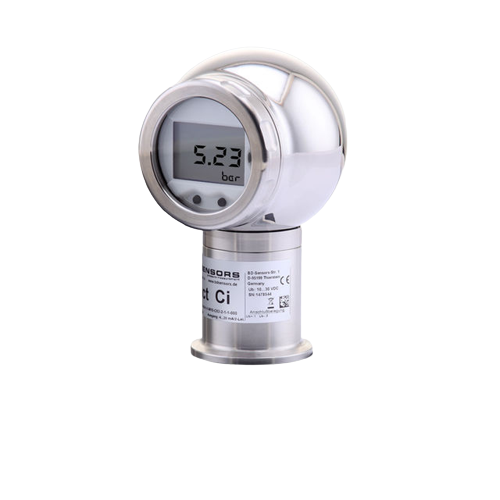

The precise pressure transmitter x\|act ci measures the pressure of gases, steam and fluids. The special-developed capacitive ceramic sensor for this transmitter, which can optionally be delivered in pure ceramic, has a high overpressure capability and excellent media stability.
Several process connections e.g. inch thread or hygienic versions like Varivent, dairy pipe or Clamp are available. The robust stainless steel globe housing has a high ingress protection IP 67 and all characteristics for a residue-free and antibacterial cleaning.
Features	nominal pressure: 0 … 160 mbar up to 0 … 20 bar
accuracy: 0.1 % FSO
turn-down 1:5
with integrated display and operating module
diaphragm ceramics Al2O3 (99.9 %)
flush mounted, capacitive ceramic sensor
hygienic version
several process connections (inch thread, Clamp, etc.)
Optional Features	explosion protection intrinsic safety (ia)
HART®-communication
