10″-14″ Flange Heaters

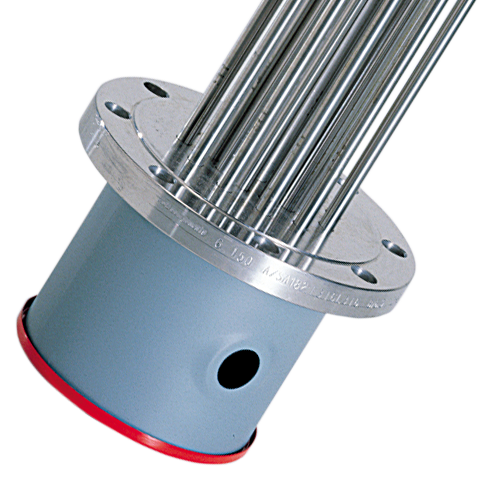

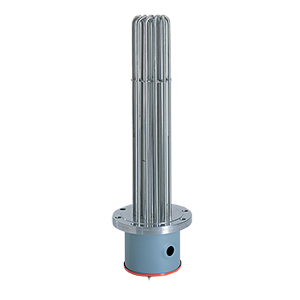

| Detail | Watlow flanged immersion heaters are easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, ANSI flanged immersion heaters are ideal for applications requiring higher kilowatts. |
|---|---|
| Watlow flanged immersion heaters are made with WATROD or FIREBAR tubular elements brazed or welded to a flange. Stock flange heaters are equipped with a general purpose terminal enclosure. | |
| Flanged immersion heaters, with FIREBAR elements, also answer the need for liquid immersion applications requiring high kilowatts in small tanks. The FIREBAR element’s unique flat surface geometry packs more power in a smaller bundle, with lower watt density, making it especially well-suited for petroleum-based liquid heating applications. | |
| Features & Benefits | UL® and CSA component recognition |
| ANSI and ANSI compatible 2, 2½, 3 thru 48 inch flanges | |
| All units are inspected and/or tested to ensure element-to-flange pressure seals do not leak | |
| Integrel thermowells provide convenient temperature sensor insertion and replacement without draining the fluid being heated | |
| Standard, general purpose terminal enclosure for easy access to wiring | |
specifications |
|
