DATASHEET

BAROLI 02 stainless steel sensor laboratory, environmental industry

BAROLI 02	stainless steel sensorlaboratory, environmental industry

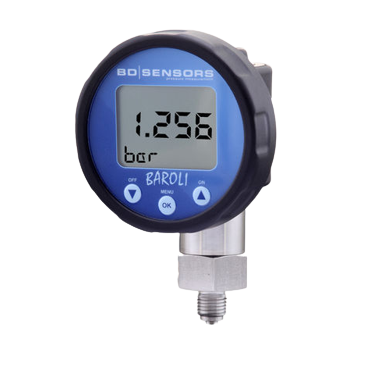

Digital pressure gauge BAROLI 02
The battery-powered digital pressure gauge BAROLI 02 enables a local displaying of values, satisfying the highest demands for accuracy and long-term stability. The pressure gauge may be applied in all media compatible with the stainless steel used; it shows an excellent robustness and a high overpressure protection.
The BAROLI 02 display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions: changing the unit, displaying min / max values, calibrating of offset and the span, configuring the automatic switching-off
Features	nominal pressure: 0 … 100 mbar up to 0 … 600 bar
accuracy: 0.125 % FSO BFSL (class 0.1)
stainless steel diaphragm
2-line LC display, 4,5-digit 7-segment display, 6-digit 14-segment additional display
different mechanical connections: inch, NPT threads
rotatable housing
Optional Features	min- / max-function with reset function
offset and end point calibration
setting the pressure unit
switch-off automatic
