BAROLI 05 ceramic sensor laboratory, environmental industry

฿14,059.00

BAROLI 05	ceramic sensorlaboratory, environmental industry

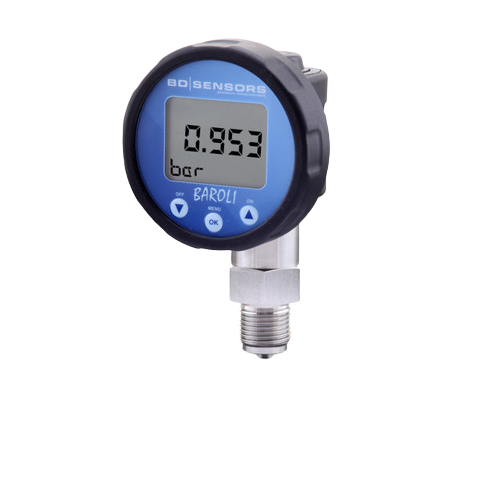

Digital gauge BAROLI 05
The battery-powered digital pressure gauge BAROLI 05 has been designed for measuring the pressure (absolute or gauge) of fluids, oils and gases.
The display housing is rotatable, thus ensuring an easy reading even under unfavorable mounting conditions. Additional functions as changing unit, displaying min / max values, calibrating the offset and of span, as well as configuring the automatic switching-off complete the profile.
Features	nominal pressure: 0 … 400 mbar up to 0 … 600 bar
accuracy: 0.25 % FSO BFSL (class 0.2)
rotatable housing
2-line LC display, 4,5-digit 7-segment display, 6-digit 14-segment additional display
different mechanical connections: inch, NPT threads
ceramic diaphragm
Optional Features	min / max function with reset function
offset and end point calibration
setting the pressure unit
switch-off automatic configuration
