DATASHEET

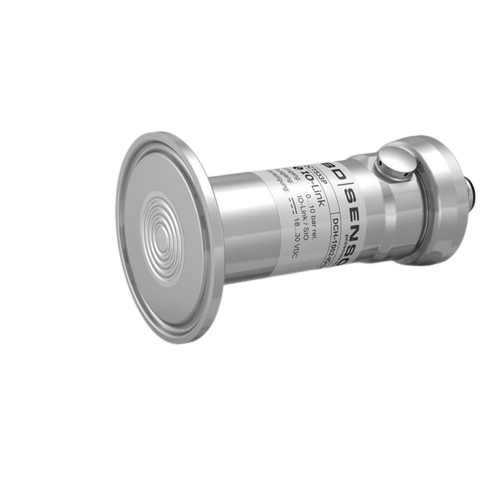

DCT 533P pressure sensor: st. steel (strain gauge) with IO-Link interface

DCT 533P	stainless steel sensor (strain gauge)with IO-link interface
The DCT 533P is suitable for food / beverage and pharmaceutical industry as well as, for applications where a totally flush pressure port is required. The special design prevents condensation inside the pressure transmitter and thus a failure in applications with large temperature changes.
The integrated, standardised IO-Link interface increases productivity and supports the operator in service and maintenance. Properties can be read and qualified via IO-Link, which helps the user to assess the state of system or process
Features	nominal pressure: from 0 … 100 mbar up to 0 … 40 bar
accuracy: 35 % (Opt. 0,25%) FSO
IO-Link according to specification V 1.1
Data transfer 38.4 kBaud
Smart sensor profile
hygenic version
ingress protection IP 67 / IP 69
diaphragm with low surface roughness
Optional Features	cooling element for media temperatures up to 300 °C
different process connections
