DATASHEET

DMK 331P stainless steel sensor (flush) hygienical application

DMP 331P	stainless steel sensor (flush)hygienical application

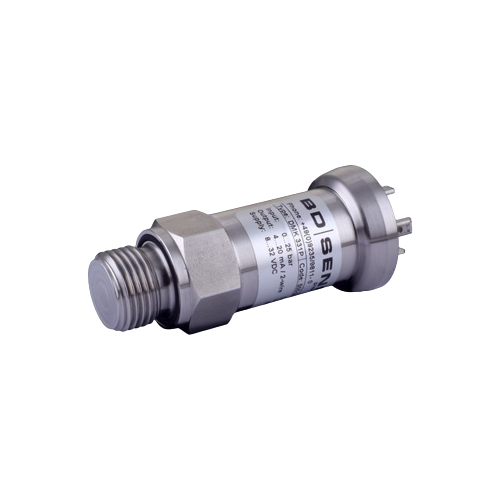

The pressure transmitter DMK 331P is suitable for measuring the pressure of viscous and pasty media, where a totally flush pressure port is required.
As on all industrial pressure transmitters made by BD\|SENSORS, you may choose between various electrical and mechanical connections also on DMK 331P.
Features	nominal pressure: 0 … 60 bar up to 0 … 400 bar
accuracy: 0.5 % FSO
suited for viscous and pasty media
Optional Features	IS-versionEx ia = intrinsically safe for gases and dusts
SIL 2 according to IEC 61508 / IEC 61511
food compatible oil filling with FDA approval
cooling element for media temperatures up to 300 °C
customer specific versions
