DATASHEET

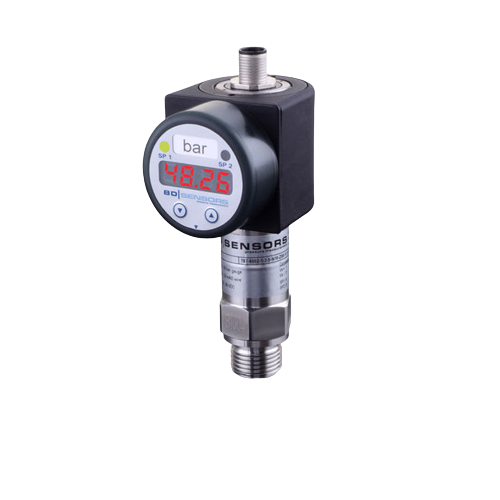

DS 201P stainless steel sensor (flush) hygienical application

DS 201P	stainless steel sensor (flush)hygienical application
The electronic pressure switch DS 201P is the successful combination of- intelligent pressure switch- digital display
and is designed for universal applications in the mechanical engineering and other industries where a flush stainless steel diaphragm is necessary. This can be the case, for example, with higher viscous or slightly contaminated fluids.
For usage with higher media temperature optionally a cooling element up to 300 °C is available.
Features	nominal pressure: 0 … 60 bar up to 0 … 400 bar
accuracy: 0.5 % FSO
1, 2 or 4 independent PNP contacts, freely configurable
rotatable and configurable display module
indication of measured values on a 4-digit LED display
Optional Features	IS-versionEx ia = intrinsically safe for gases
cooling element up to 300 ° C
customer specific versions
