DATASHEET

DS 202 stainless steel sensor (welded) medical technology, oxygen applications

DS 202	stainless steel sensor (welded)medical technology, oxigen application

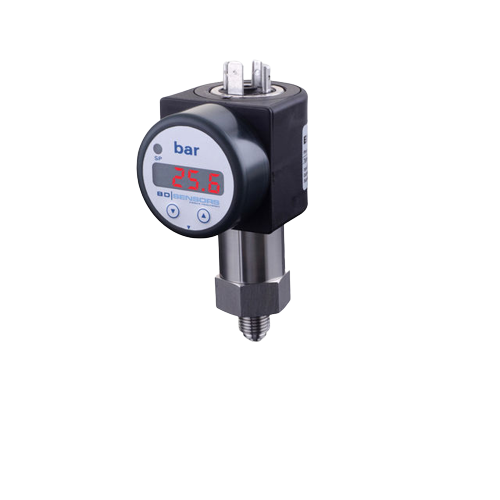

The electronic pressure switch DS 202 is the successful combination of- robust pressure transmitter- digital displayand has been specially designed for numerous applications in various industrial sectors.
As standard the DS 202 offers a PNP contact and a rotable display module with 4-digit LED display.The transmitters are suitable for an unrestricted use in oxygen applications up to 600 bar and an intrinsically safe IS-Version.
Features	nominal pressure: 0 … 6 bar up to 0 … 600 bar
accuracy: 0.5 % FSO
indication of measured values on a 4-digit LED display
rotatable and configurable display module
1, 2 or 4 independent PNP contacts, freely configurable
Optional Features	IS-versionEx ia = intrinsically safe for gases
oxygen application
customer specific versions
