DATASHEET

DS 214 stainless steel sensor (welded) Plant and Machine Engineering

DS 214	stainless steel sensor (welded)Plant and Machine Engineering

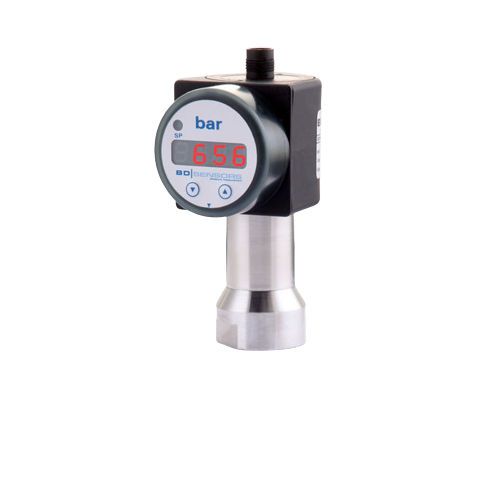

The electronic pressure switch DS 214 for very high pressure up to 2200 bar has been designed especially for use in plant and machine engineering as well as in mobile hydraulics.
The DS 214 has one 1 contact with standard version, this can optionally be upgraded up to four independent contacts.
Via the rotatable modul with an integrated 4-digit display the DS 214 can be programmed easily and comfortably.
Features	nominal pressure: 0 … 600 bar up to 0 … 2200 bar
accuracy: 0,35 % FSO
indication of measured values on a 4-digit LED display
rotatable and configurable display module
1, 2 or 4 independent PNP contacts, freely configurable
pressure sensor welded
extremely robust and excellent long term stability
Optional Features	adjustability of span and offset (4 … 20 mA / 3-wire)
customer specific versions
