EE451 – Wall Mounted Temperature Sensor for Indoor and Outdoor
| EE451 | Wall Mounted Temperature Sensor |
|---|---|
| The EE451 measures accurately the temperature indoors and outdoors in building automation, HVAC and process control and enables weather-dependent temperature regulation. | |

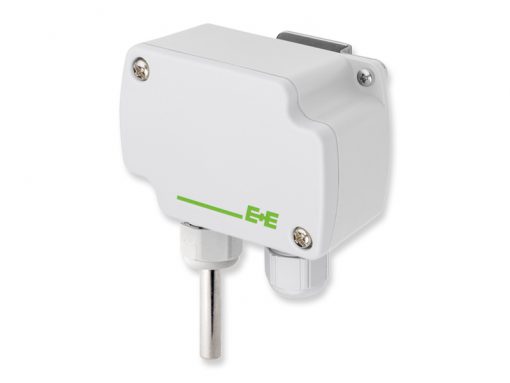

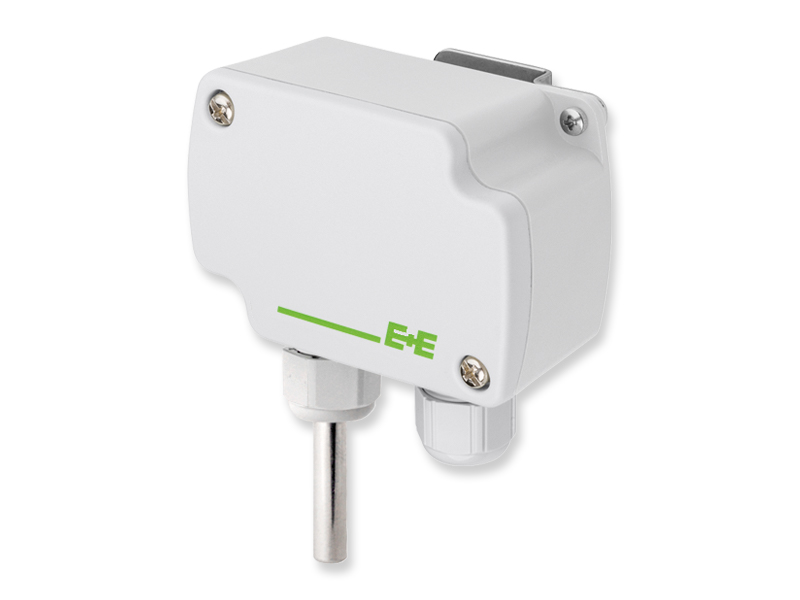

| Type | EE451 wall mounted temperature sensor – active |

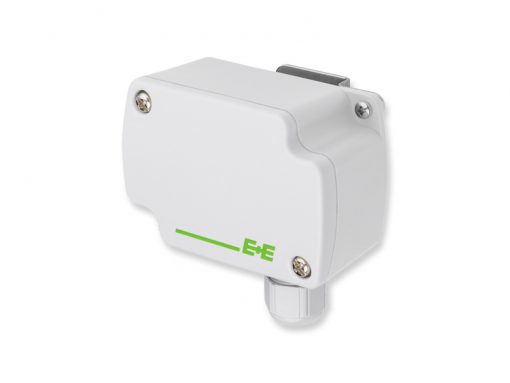

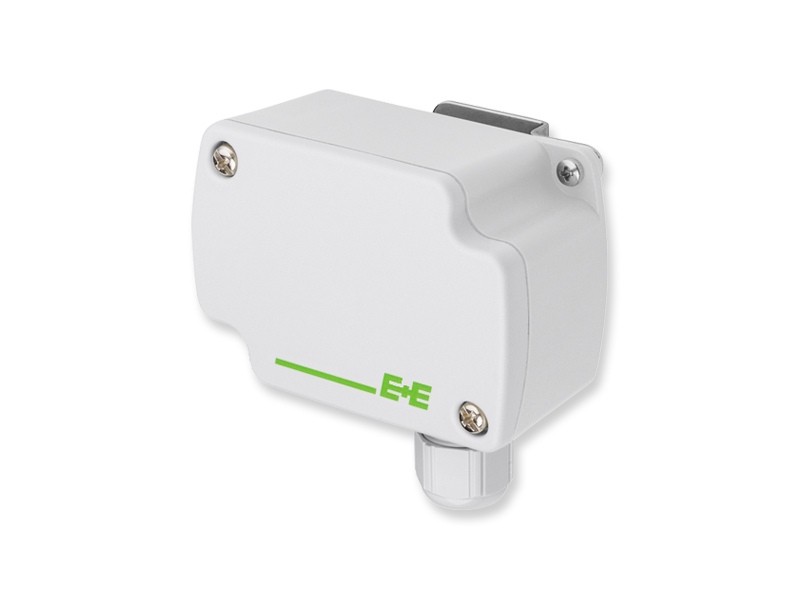

| EE451 wall mounted temperature sensor – passive | |

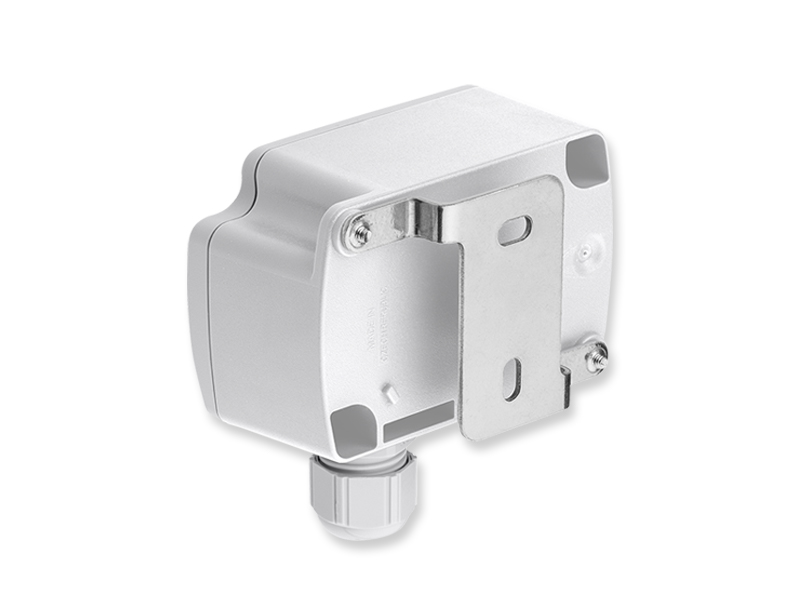

| EE451 mounting bracket | |
| รายละเอียด | The T measured data is available on the voltage or current output, as well as on the RS485 interface with Modbus RTU or BACnet MS/TP protocol. In addition, EE451 features a wide choice of sensing elements for passive T measurement. |
| The compact and robust enclosure allows for easy and fast installation and unbiased detection of ambient temperature. | |
| An optional adapter and the free EE-PCS Product Configuration Software facilitate the setup and adjustment of the EE451. | |
| Enclosure | IP65 / NEMA4 |
| External mounting holes | |
| Bayonet screws | |
| Mounting bracket | |
| OPERATING TEMPERATURE | -40…70°C (-40…158 °F) |
| ACCURACY ACTIVE OUTPUT | ±0.3 °C (±0.54 °F) |
| ANALOGUE OUTPUT | 0-10 V or 4-20 mA |
| DIGITAL INTERFACE | RS485 with Modbus RTU or BACnet MS/TP |
| PROTECTION CLASS | IP65 / NEMA 4 |
| SUPPLY | 24 V AC/DC |
