EE461 – Temperature Cable Sensor

EE461/EE462/EE432	Cable Temperature Sensors
Cable sensors for temperature measurement are used inheating, ventilation and air conditioning systems as well asfor process control.

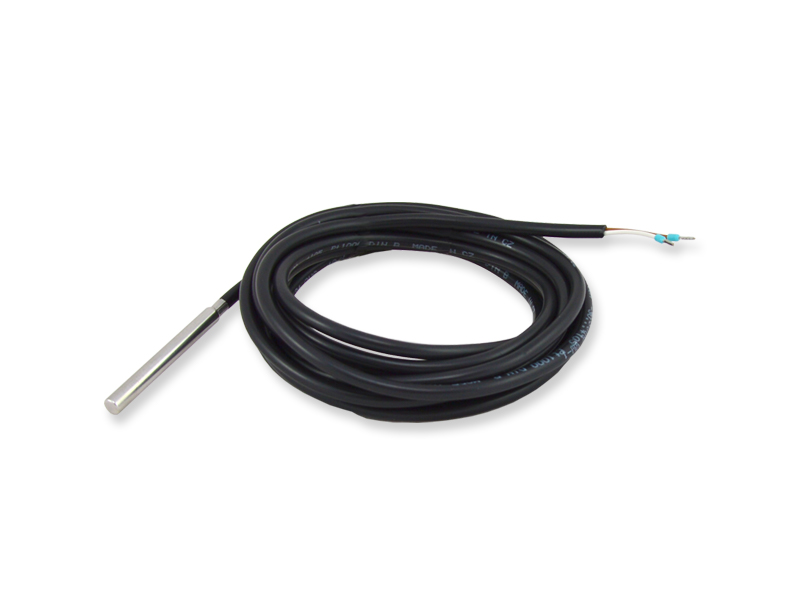

Type	EE461 cable temperature sensor

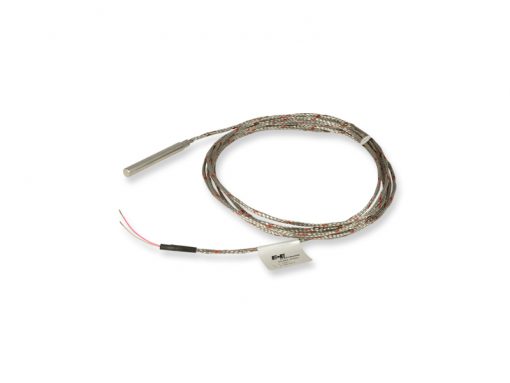

EE462 cable temperature sensor – glass fiber

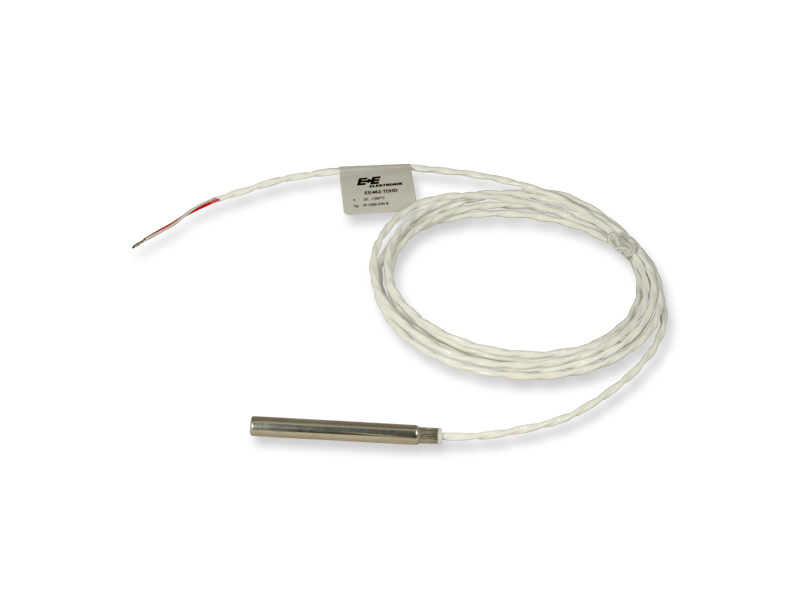

EE462 cable temperature sensor – PTFE

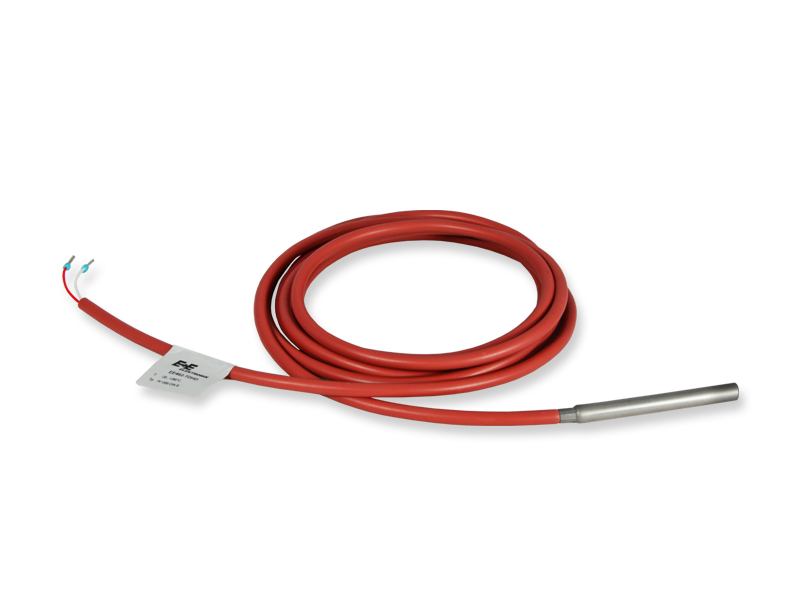

EE462 cable temperature sensor – silicone

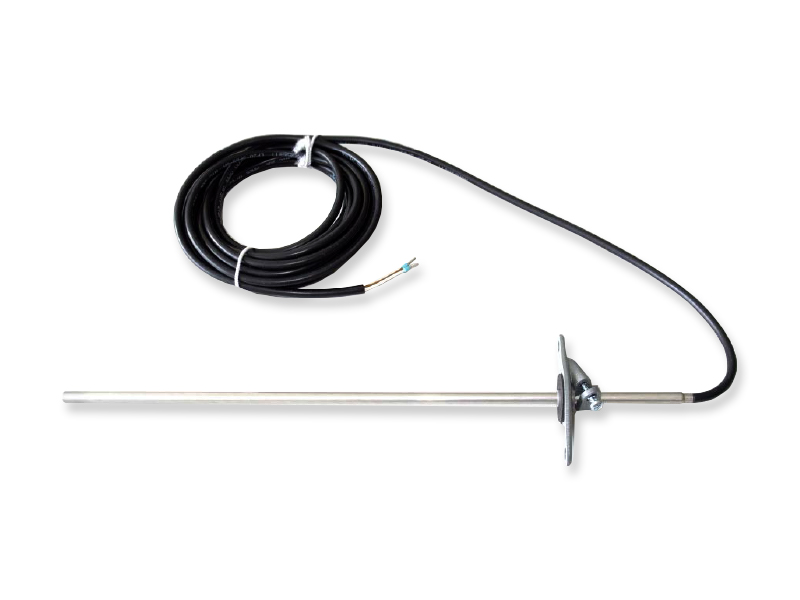

EE432 cable temperature sensor with flange
รายละเอียด	Several types of sensing elements such as Pt100, Pt1000, NTC or Ni1000 are available. The an innovative star pressing of the sensor sleeve provides a high protection class IP67 / NEMA 4. All product-specific information is printed all along the cable.
Products	EE461 – Cable Temperature Sensor
EE462 – Cable High-Temperature Sensor
EE432 – Cable Temperature Sensor with Flange
Typical Applications	Building automation
Process and climate control
Key Features EE461/EE462/EE432	High protection class
Cable labeling
Various sensing elements and cable lengths
2 or 4 wire connection
Technical data EE461/EE462/EE432 OPERATING TEMPERATURE – EE461 / EE432	-30…105 °C (-22…221 °F)
OPERATING TEMPERATURE – EE462 – GLASS FIBER	0…350 °C (32…662 °F)
OPERATING TEMPERATURE – EE462 – PTFE	-20…260 °C (-4…500 °F)
OPERATING TEMPERATURE – EE462 – SILICONE	-60…180 °C (-76…356 °F)
PROTECTION CLASS	IP67 / NEMA 4
INSULATION RESISTANCE	typ. > 100 MΩ at 20 °C (68 °F)
