EE610 – Low Differential Pressure Sensor
| EE610 | Low Differential Pressure Sensor |
|---|---|
| The EE610 is dedicated for the highly accurate measurement of low differential pressure in medical, pharmaceutical and clean room applications. It can be employed in air or in non-flammable and non-aggressive gases. | |

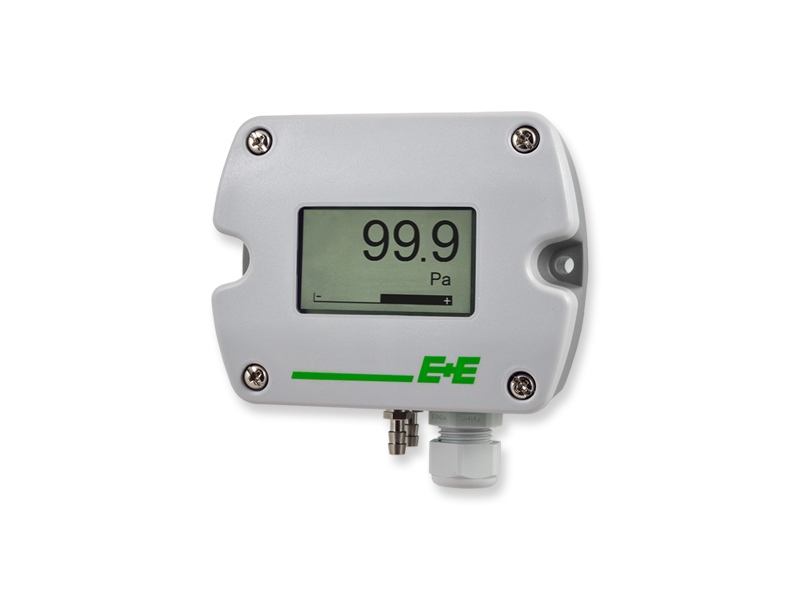

| Type | EE610 low differential pressure sensor for wallmounting with display |

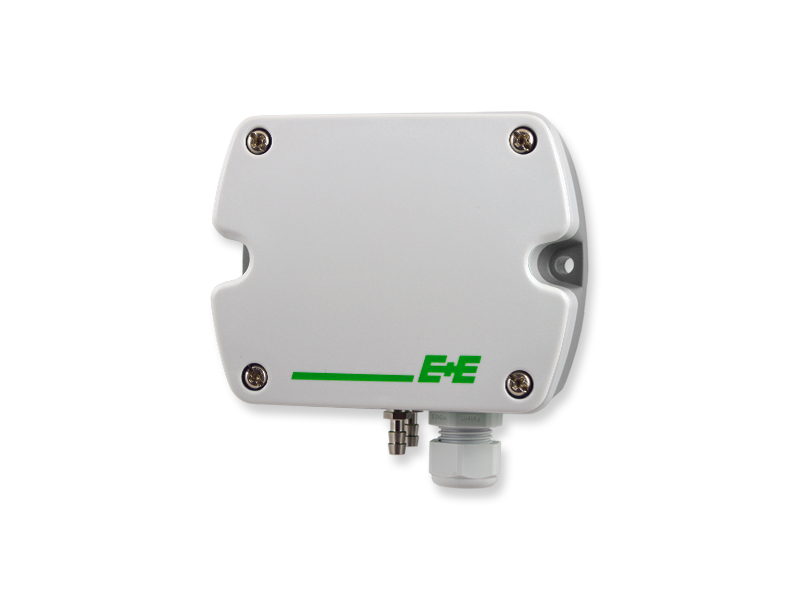

| EE610 low differential pressure sensor for wallmounting | |
| Measurement Performance | The EE610 offers ± 0.5 Pa accuracy over the entire measurement range. For the versions with analogue outputs, the EE610 offers selectable measuring ranges of ± 25 / ± 50 / ± 100 Pa and 0…100 Pa. The long-term stable, piezo-resistive no-flow-through pressure sensing element excludes the risk of cross-contamination. |
| Analogue and Digital Outputs | The measured data is available on the analogue voltage and current outputs or on the RS485 interface with Modbus RTU or BACnet MS/TP protocol. |
| Functional and Robust | The IP65 / NEMA 4 enclosure facilitates easy mounting and minimizes installation costs. External mounting holes allow installation with closed cover. |

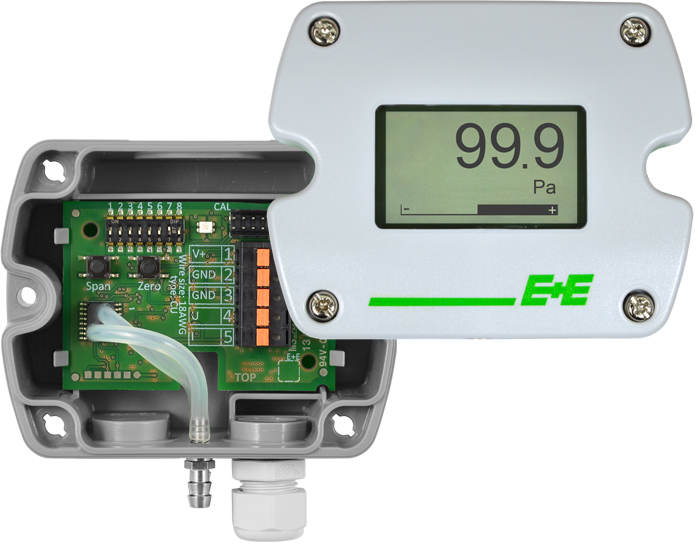

| Configurable and Adjustable | The setup and adjustment can be easily performed with DIP-switches and push buttons on the electronics board (EE610 with analogue outputs) or with an optional adapter and the free EE-PCS configuration software (EE610 with RS485 interface). The setup includes bidirectional or unidirectional pressure range, output signal, response time, display units and backlight. A zero and span point adjustment can be easily performed with push buttons on the electronics board. |
| Key Features EE600 | Multi-range device |
| High accuracy | |
| Analogue or digital version available | |
| Fully configurable | |
| Large graphic display | |
| Installation-friendly enclosure | |
| MEASURING RANGE | ± 25 / ± 50 / ± 100 Pa |
| 0…100 Pa | |
| ACCURACY – *FULL SCALE (1000 PA OR 10000 PA) | ±0.5 Pa = 0.5 % FS* |
| OVERLOAD LIMITS | ± 7000 Pa |
| ANALOG OUTPUTS – SELECTABLE WITH DIP SWITCHES | 0-5 V or 0-10 V and |
| 0-20 mA or 4-20 mA | |
| DIGITAL OUTPUT | Modbus RTU or BACnet MS/TP |
