DATASHEET

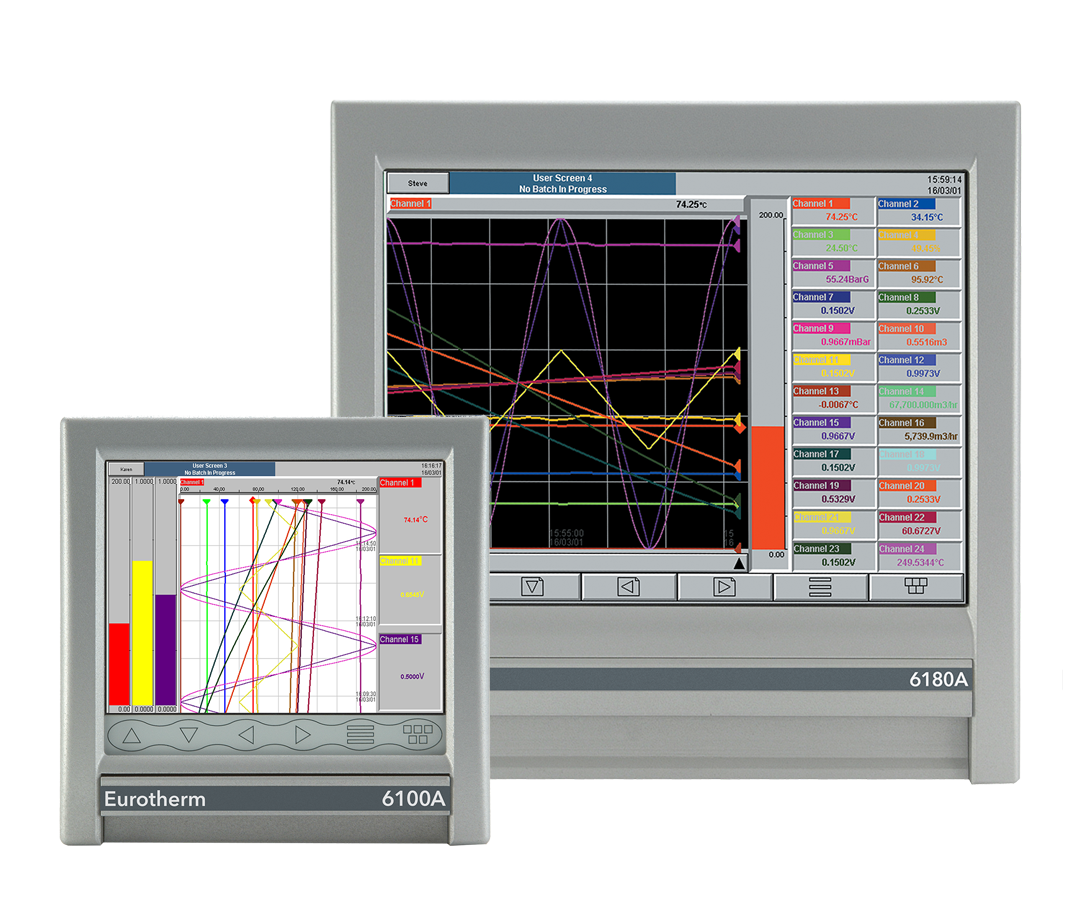

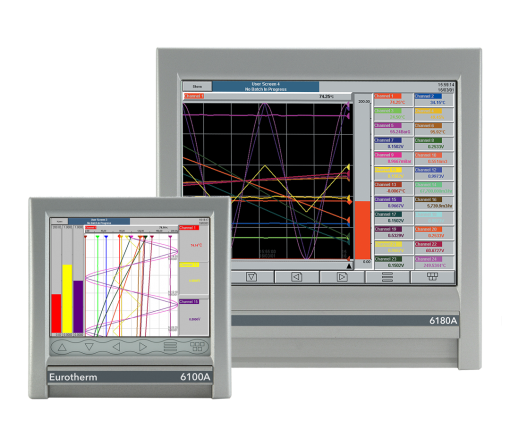

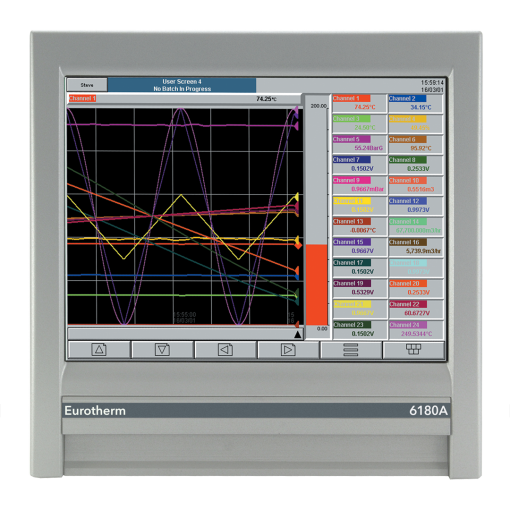

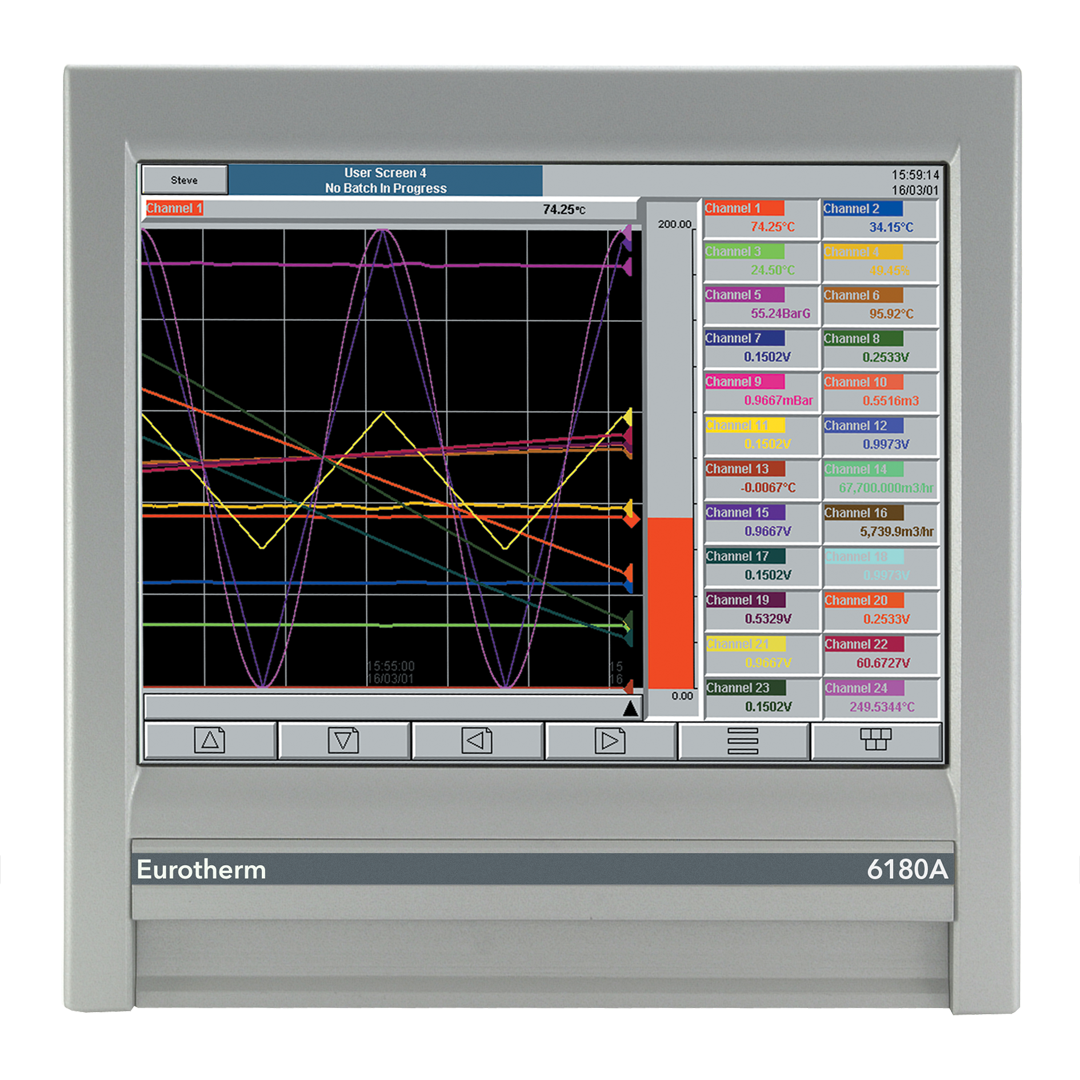

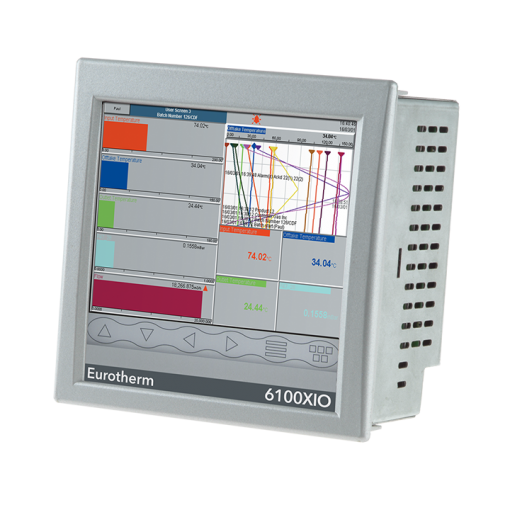

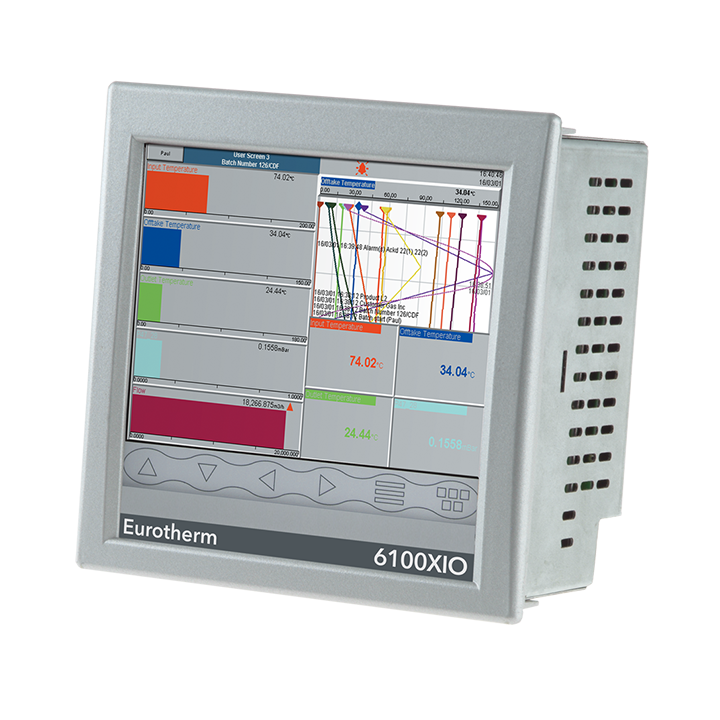

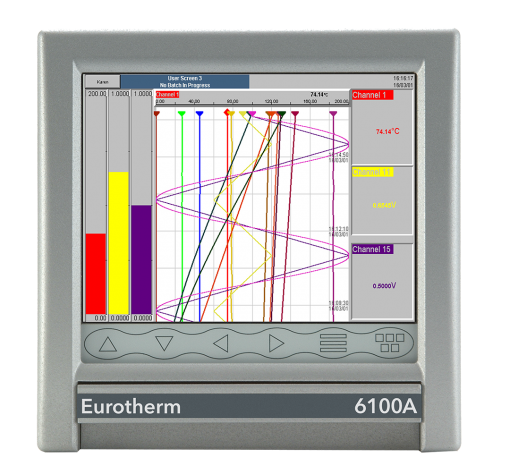

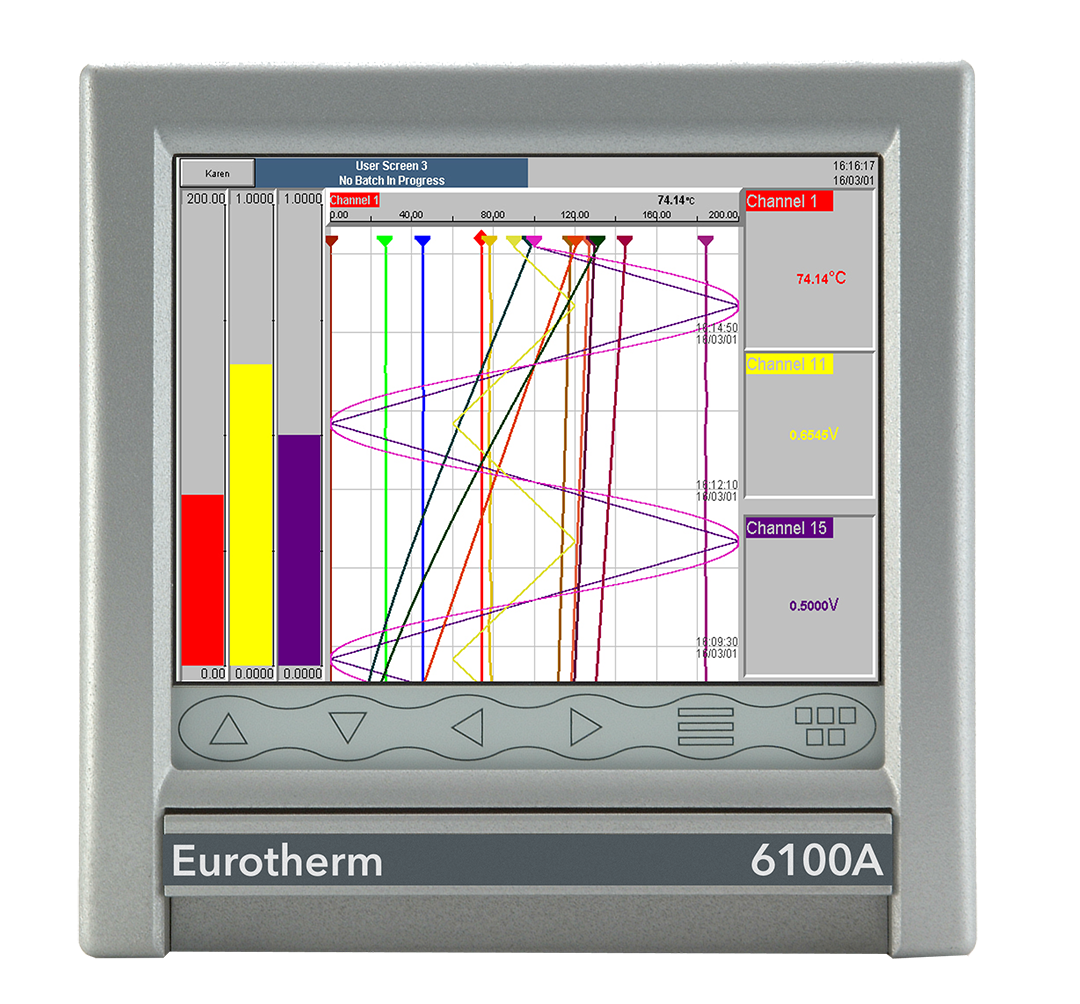

Eurotherm® 6000XIO Distributed Graphic Recorders

รายละเอียด	6000XIO Data Recorders
	Each 6000XIO instrument has an intuitive, touch screen display to enable operators to clearly view process data in varying formats. All have onboard Flash data storage capability, Ethernet communications and Compact Flash cards for data archiving.
คำอธิบาย	12.1″ XGA and 5.5″ ¼VGA display options Remote visualization and configuration 32Mbyte onboard Flash data storage Modbus Master Batch functionality 16-bit color, touch screen displays Custom graphic displays Data is stored in a tamper-resistant binary format that can be used for secure, long term records of your process. The 6000XIO is truly designed for today’s networked world and can be accessed via a Local Area Network, dial-up connection, intranet or Internet.
Ideal for:	Remote monitoring applications Water/waste water solutions Utility distribution Power generation 21 CFR Part 11 applications AMS2750F/Nadcap applications
Features:	Modbus master Ethernet TCP/IP Serial comms Up to 176 comms channels Batch functionality Audit trail Individual user accounts Software password protection USB ‘plug & play’ Web server 4 alarms per channel 24 custom displays Up to 32 Modbus slaves
