HTP201 - Humidity and Temperature Probe with Analogue Outputs

HTP201 - Humidity and Temperature Probe with Analogue Outputs - Image 3

HTP201 - Humidity and Temperature Probe with Analogue Outputs - Image 4

DATASHEET

HTP201 – Humidity and Temperature Probe with Analogue Outputs

HTP201	Humidity and Temperature Probe with Analogue Outputs
The HTP201 is a compact humidity and temperature probe with analogue outputs. Its excellent price/performance ratio, robust design and wide temperature range makes it a versatile probe suitable for a wide range of applications.

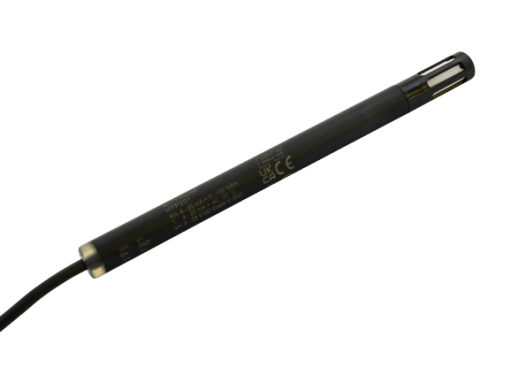

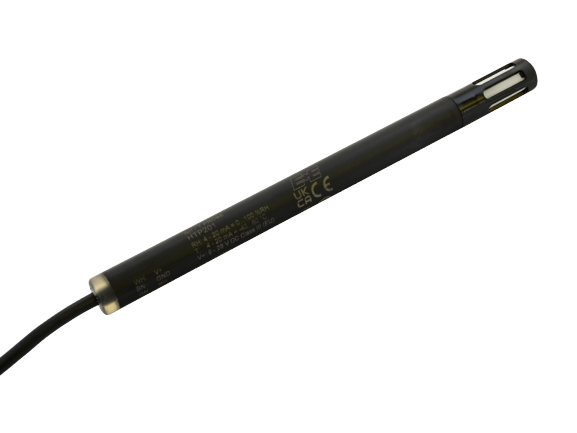

ประเภท	HTP201 – Polycarbonate humidity and temperature probe with cable

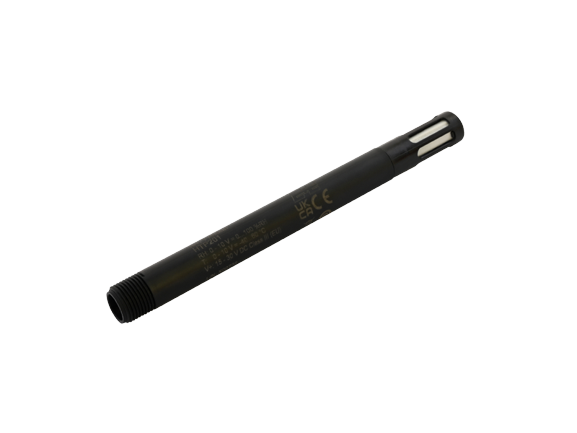

HTP201 – Polycarbonate humidity and temperature probe with plug

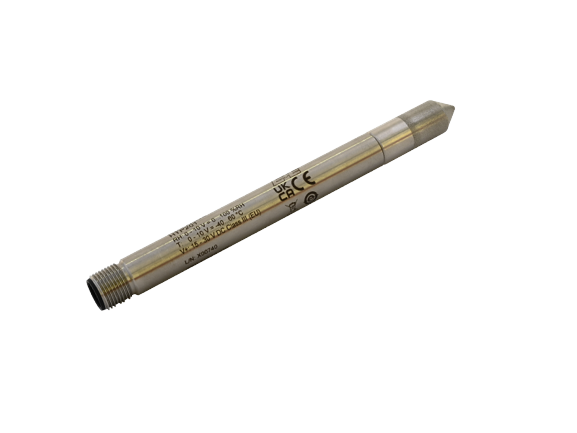

HTP201 – Stainless steel humidity and temperature probe with plug
รายละเอียด	Outstanding Measurement Performance with Patented Sensor Technology The E+E humidity and temperature sensing element with proprietary protection and sealed solder pads ensures excellent long-term performance of the HTP201 over the entire working range and even in dusty and dirty environment. Innovative PCB design inside the probe reduces self-heating relevantly.
Versatility and Robustness Excellent protection against external influences is ensured by the combination of completely encapsulated electronics and the long-term stable E+E humidity and temperature sensing element. Its IP65 stainless steel or polycarbonate enclosure and integrated cable or a threaded connector make it a versatile probe tackling even challenging applications.
Analogue Outputs The humidity and temperature measured data is available on two analogue outputs for voltage (0 – 1 V, 0 – 5 V or 0 – 10 V) or current (4 – 20 mA). In addition, the HTP201 has a passive T output (4-wire), a wide temperature and supply voltage range, making it a universally applicable probe.
MEASURING RANGE	0…100 % RH
-40…80 °C (-40…176 °F)
ACCURACY	±2.5 % RH
±0.3 °C (±0.54 °F)
Analogue output – voltage	0 – 1/5/10 V
Analogue output – current	4 – 20 mA
