HTS801 – Humidity and Temperature Sensor for High Humidity and Chemically Polluted Conditions

Outstanding Measurement Performance
The heated high-end E+E humidity and temperature sensing element enables reliable and long-term stable measurement in extremely humid or chemically polluted environment. The monolithic structure of the RH / T sensing element, protected by the E+E proprietary coating, allows for fast return to normal conditions after condensation or chemical contamination.

Versatile and Robust

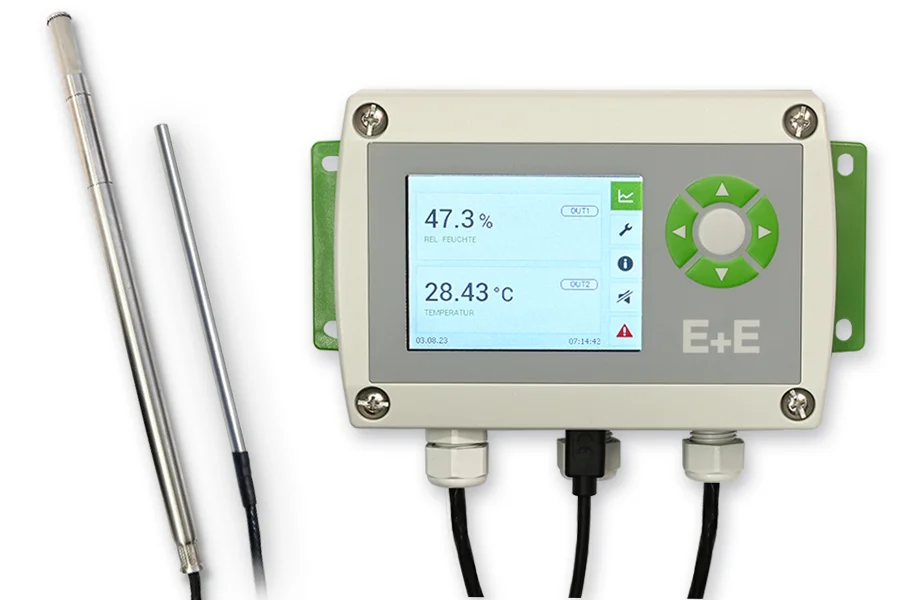

Six HTS801 versions are available with several probe and cable lengths. With different heating modes, the HTS801 can be perfectly tailored to the specific needs of each measurement task. It features an IP65 / NEMA 4X polycarbonate or stainless-steel enclosure which can accommodate various interface modules and electrical connection options.

rapidX Smart Probes
The HTS801 allows the use of intelligent pluggable rapidX probes, for quick and easy plug-and-play probe exchange. Any HTS801 rapidX smart probe automatically uploads its specific parameters upon connecting it to the HTS801 electronics and can be replaced even during operation without any configuration, adjustment or calibration. This is particularly useful for excluding down time and its corresponding costs in harsh industrial environment, where the probe can get occasionally damaged.

Outputs and Configuration
The measured data is available on two freely scalable analogue outputs, on the RS485 (Modbus RTU) or Ethernet-PoE (Modbus TCP) interface and on the alarm (relay) outputs. The configuration and the RH and T adjustment of the HTS801 can be performed with the free PCS10 Product Configuration Software. An optional 3.5″ colour display with push-buttons is available for configuration and visualisation.

Typical Applications

Drying Processes for brick, ceramics, wood, concrete, polyester etc.
High-humidity storage rooms
Climate, test and curing chambers
Meteorology measurement for NMI‘s and ice-warning systems
Fuel cell and automotive test benches
Pharmaceutical and chemical applications
Extend Your Warranty Up to 5 Years with the E+E Service and Calibration Packages
Our service and calibration packages ensure that you are on the safe side when it comes to the accuracy and availability of your measuring devices. Choose the right service package for your E+E product and benefit from professional device service, calculable costs and excellent measuring accuracy in the long-term.

Key Features:
Highest measurement accuracy
High-end monolithic RH/T sensing element
Wide working range from -80 °C to 180 °C (-112 °F to 356 °F)
Pressure-tight probe up to 300 bar (4 351 psi)
Heating modes for temporary condensation or permanent high humidity
Automatic ReCovery (ARC) function to remove chemical pollution
E+E proprietary coating for excellent long-term stability under harsh conditions
rapidX smart probe with included sensing element data
