DATASHEET

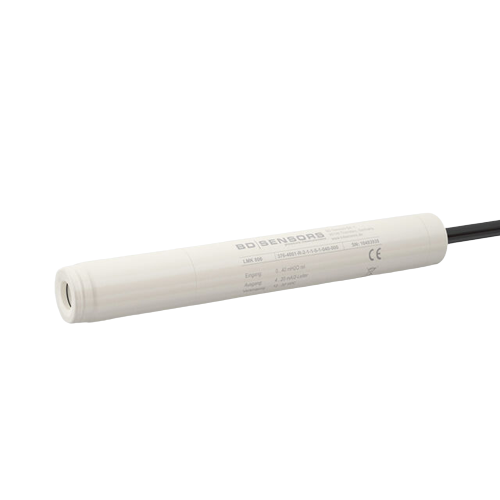

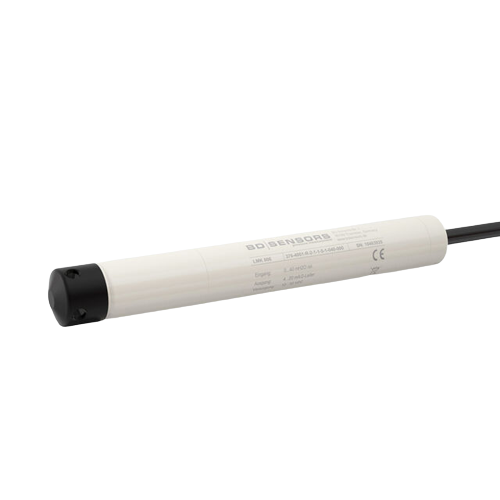

LMK 806 ceramic sensor (flush) Plastic Probe Ø 21

LMK 806	ceramic sensor (flush)Plastic Probe Ø 21
The LMK 806 with ceramic sensor and diameter from only 21 mm has been especially designed for the continuous level measurement at confined space conditions. Permissible media are waste water or and different aggressive media.
Basic element of the plastic submersible probe is the flush mounted ceramic sensor, which makes cleaning easier when solid parts of the medium deposit on it. Different cable and elastomer materials are available in order to achieve maximum media compatibility.
Features	nominal pressure: from 0 … 6 mH2O up to 0 … 200 mH2O
diameter 21 mm
excellent linearity
excellent long term stability
accuracy: 0,5% FSO
suitable for hydrostatic level measurement e.g. 3/4″ pipes
Optional Features	different cable materials
customer specific versions, e.g. special pressure rang
