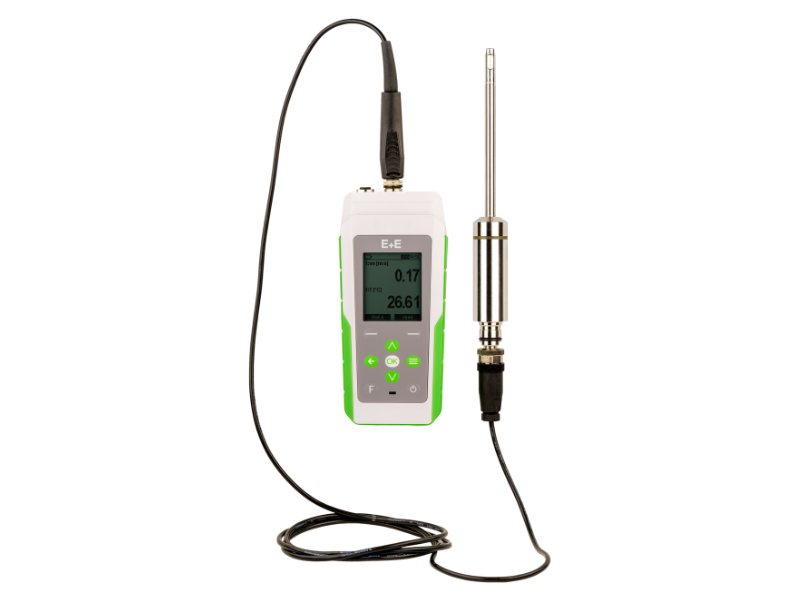

Omniport 40 Hand-Held Meter for Moisture in Oil

Maximum convenience thanks to automatic sensor detection
The Omniport 40 enables the parallel connection and use of up to two sensors, which are automatically detected. The user benefits from maximum convenience thanks to the simple interchangeability of the sensors and the ability to record several measured variables simultaneously. This not only reduces the time required and possible sources of error, but also noticeably increases the efficiency of measurement data acquisition and analysis. In addition, the Omniport 40 offers an extensive data logging function that allows up to 1 million data records to be stored. This makes it possible to store a large amount of measurement data over a long period of time without having to export the recordings regularly. The stored data can be retrieved at any time. The high storage capacity reduces administration costs and increases the efficiency of data evaluation.

The Omniport 40 hand-held measuring device has been redesigned both visually and technically and offers a wide range of measuring options. A large selection of hand-held and process probes enables the recording of various parameters such as temperature, humidity, air velocity, dew point (down to -60° Td), moisture in oil or CO2 – precisely and on site with just a single device. This saves time required for individual measurements.
All Hand-Held Probes are supplied with a test report according to DIN EN 10204-2.2 and the connected probes can be adjusted directly via the hand-held measuring device.

Fast measurement data recording and display
– Large selection of hand-held probes and process probes
– Automatic detection of different probes
– Connection of up to two probes, remote for process probes up to 1 m (3.28 ft) and hand-held probes up to 2 m (6.56 ft)
– Data logging of up to 1 million data records
– Data collecting mode
– Moisture-in-oil measurement and oil database

User friendly functions
– Alarm function with upper/lower thresholds and optional hysteresis
– Favourites function
– Hold function
– Rel function

Intuitive user interface
– Dot matrix display (backlit)
– Choice of display screens: large single value, multi-line, statistical values (min. / AVG / max.), diagram view
– Status bar
– Languages (selectable)

User-centred product design
– Rechargeable batteries
– USB-C interface
– Built-in fold-out stand or magnet
– Shock and impact resistant (IP67)
