DATASHEET

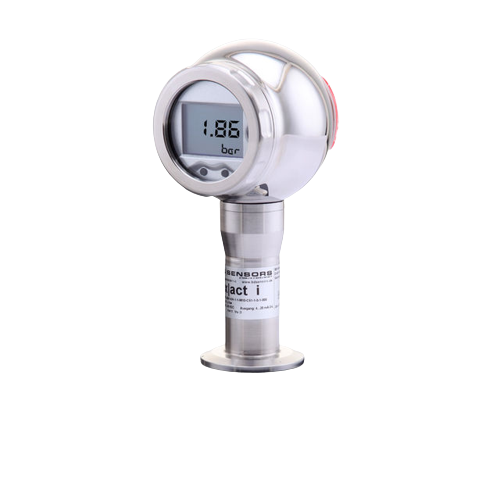

x|act i stainless steel sensor (flush) hygienical application

x\|act i	stainless steel sensor (flush) hygienical application
The precise pressure transmitter x\|act i has been especially designed for the food industry, pharmacy and biotechnology and measures vacuum, gauge and absolute pressure of gases, steams and fluids up to 40 bar.
Several process connections e.g. thread or hygienic versions like Varivent, dairy pipe and Clamp with a flush welded diaphragm are available, which can be combined with a cooling element for media temperatures up to 300 °C. The robust stainless steel globe housing has a high ingress protection IP 67 and all characteristics for a residue-free and antibacterial cleaning.
Features	nominal pressure: 0 … 400 mbar up to 0 … 40 bar
accuracy: 0.1 % FSO
hygienic version
flush welded diaphragm
several process connections (G1″ cone, Clamp, dairy pipe, etc.) (G1″ cone, Clamp, dairy pipe,etc.)
with integrated display and operating module
Optional Features	explosion protection intrinsic safety (ia)
SIL2-version according to IEC 61508 / IEC 61511
HART®-communication
cooling element for media temperatures up to 300 °C
